– Factory – Direct / Workbench Manufacturer –

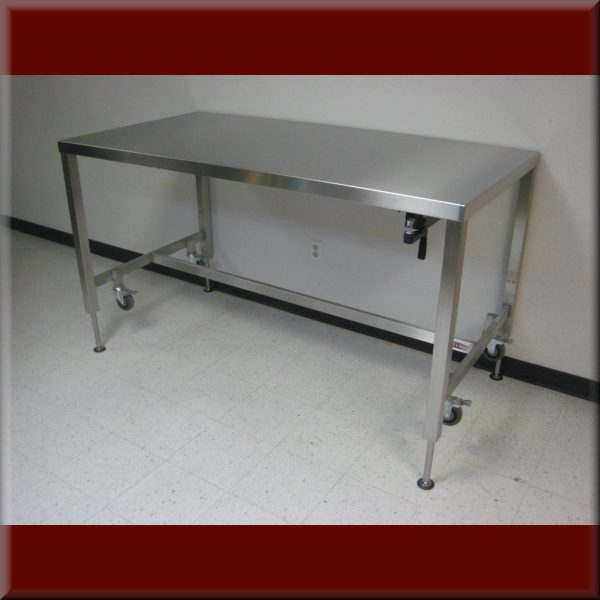

Table Model A-107P-SS – Stainless Steel Workbench w/ Hydraulic Lift

– Stainless Steel Adjustable Height Table…

RDM Lift tables
  • Standard Sizes (To be Entered Below):
    • We are the manufacturer…
    • Feel free to specify your custom dimension below or choose from the following:
    • “A” WIDTH – 30″, 36″, 48″, 60″ & 72″ Width (Right-to-Left)
      • Visit our Large Table page for more sizes…
      • Minimum Top/Unit Width & Depth (Required to Accommodate Hydraulic System):
        • Electric Motor Hydraulic System:
          • 6″ Lift – 28″ Min. Width
          • 8″ Lift – 30″ Min. Width
          • 10″ Lift – 32″ Min. Width
          • 12″ Lift – 34″ Min. Width
          • 16″ Lift – 38″ Min. Width
        • Manual Crank Hydraulic System (Min Depth if Hand Crank located at front of Unit):
          • NOTE: Hand Crank folds beneath work surface…
          • 6″ Lift – 15″ Min. Width or Depth
          • 8″ Lift – 17″ Min. Width or Depth
          • 10″ Lift – 20″ Min. Width or Depth
          • 12″ Lift – 22″ Min. Width or Depth
          • 16″ Lift – 26″ Min. Width or Depth
    • “B” DEPTH – 30″ & 36″ Depth (Front-to-Back)
    • “C” HEIGHT – 30″ (Sitting “Desk” Height), 34″ (ADA/Accessible Height), 36″ (Standing Tasks)
      • Minimum Heights with Levelers or Offset Casters (Subtract 4.75″ for Full-Time Caster Option):
        • 6″ Lift – 16″ Min. Height
        • 8″ Lift – 18″ Min. Height
        • 10″ Lift – 20″ Min. Height
        • 12″ Lift – 22″ Min. Height
        • 16″ Lift – 26″ Min. Height
        • 20″ Lift – 30″ Min. Height

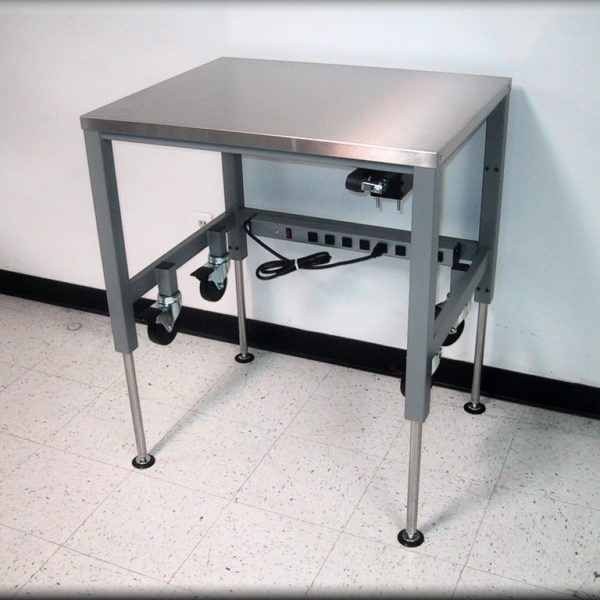

This Unit shown with Optional Part-Time Casters for Mobility…

Standard Lift Table Features…

  • More Costly than our Typical Carbon Steel Frame Construction…
  • Ergonomic Table Height Adjustability (Options)
    • Hydraulic-Assisted Height Adjustment w/ Electric Motor or Hand Crank
      • Hand Crank is mounted below work surface (Front or Side)
      • Switch for Electric Motor Option Unit can be positioned anywhere on the unit…
      • 1,000 pound capacity lift system – 4 Leg Unit (Less Weight of Unit)
      • Optional 1,500 pound capacity lift system available w/ electric motor – 4 & 6 Leg Unit (Less Weight of Unit)
      • Optional 2,000 & 3,000 pound capacity lift system options available w/ electric motor – 8 Leg Unit (Less Weight of Unit)
      •   – Non-Toxic, Food-Grade Hydraulic Fluid for above systems…
      • UL approved – Lift Systems with Electric Motors are UL listed (Required for Units w/ Electrical Components).
      • CSA approved – Lift Systems with Electric Motors are CSA Certified (Required for Units w/ Electrical Components).
    • Manually-Adjusted Height Option w/ Leg Pins – See Table Model A-109P-PIN
  • Durable Stainless Steel Frame Construction w/ Lower Crossmember (Can be used as a footrest)
    • Welded Tubular Steel Frame Connections
    • Type 304 Stainless Steel Construction
    • Type 316 Stainless Steel Construction available as option – Used in highly corrosive environments – More Expensive $$$
  • Other Styles Available – See Our Stainless Steel Tables page…
  • Adjustable Leveling Feet.  Casters available as option – See below…

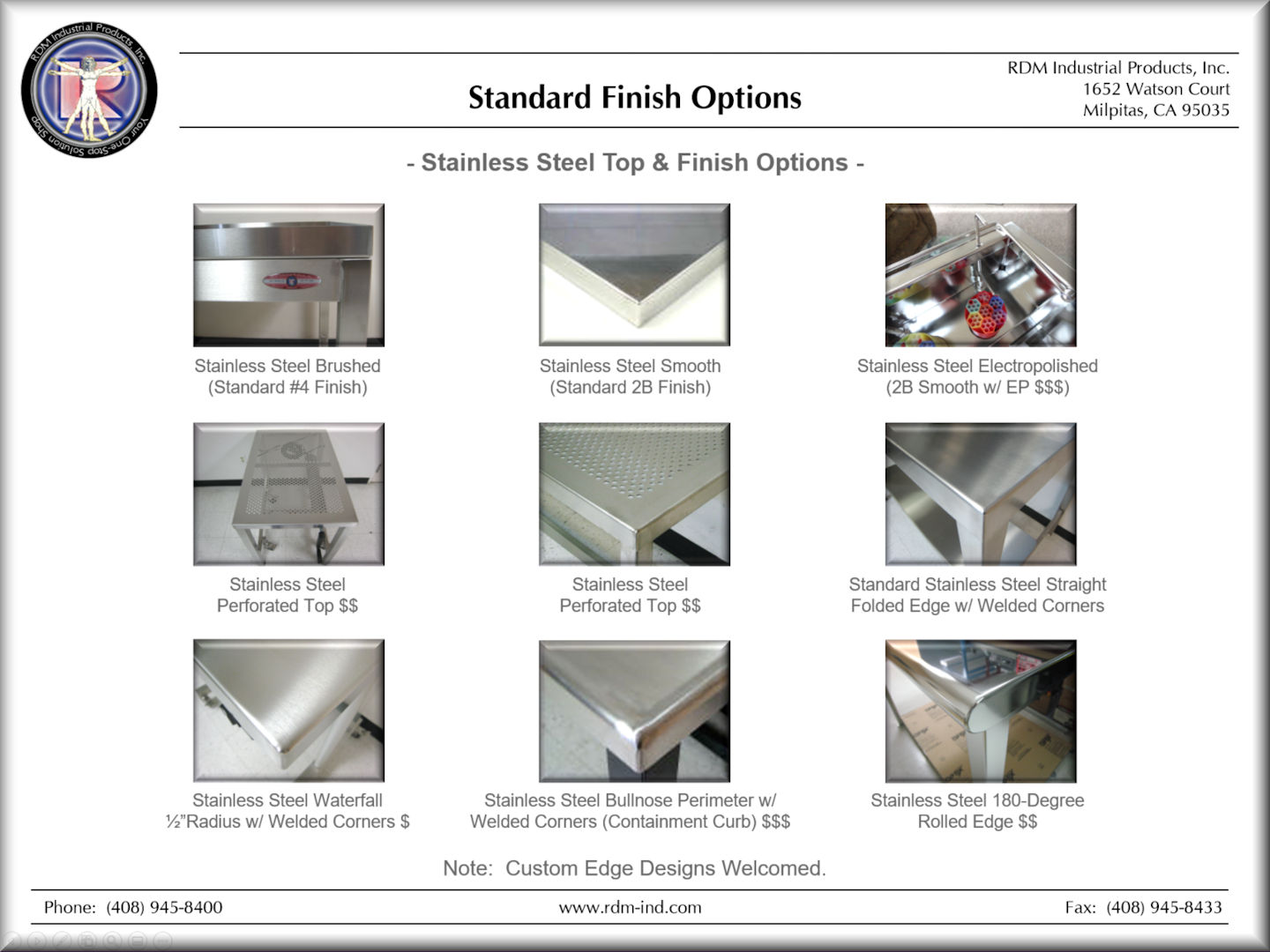

  • Many Top Options to Choose From, Including Plastic Laminate, Chemical Resistant, ESD / Static-Control, Solid Surface, Solid Wood (Butcher Block), Stainless Steel, and More…
  • Designed for Many Applications:
    • General Use…
    • Food Preparation
    • Cleanrooms…

This model is part of the RDM Industrial Workbenches standard models.
