Table Model i-107P – i-Frame Ergonomic Adjustable Height Flat Top Table

Standard Table Features…

• Ergonomic ADA Table with Height Adjustability (Options)
  • Hydraulic-Assisted Height Adjustment w/ Electric Motor or Hand Crank
    • 500 pound capacity – 2 Leg Unit (Less Weight of Top) – 1000 pound capacity available as option

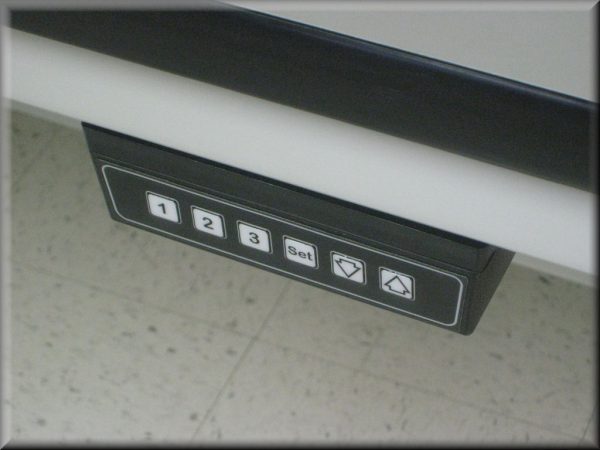

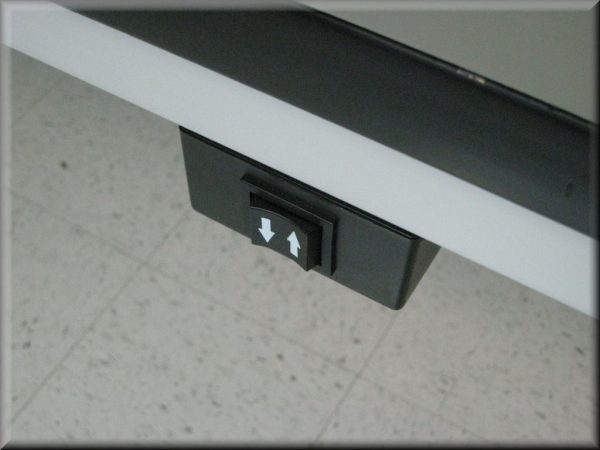

    • Switch for Electric Motor Unit can be positioned anywhere on the unit…

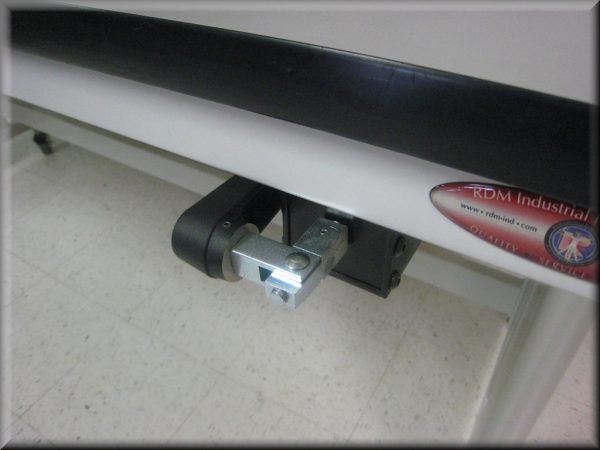

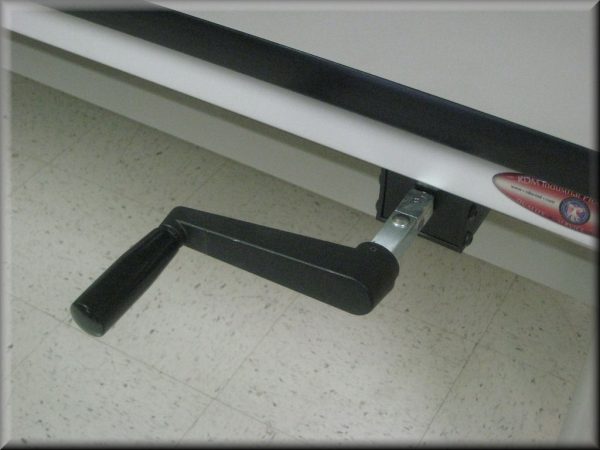

    • Hand Crank is mounted below work surface (Front or Side)
  • Manually-Adjusted Height Option w/ Leg Pins – See Table Model A-109P…
• Other Styles Available – See Our Adjustable Height Tables  page…
  • Also See Our Laboratory Tables page…
• Standard Sizes:
  • We are the manufacturer…
  • Feel free to specify your custom dimension requirements below or choose from the following…
  • “A” – 48″, 60″ & 72″ Width (Right-to-Left)
    • Minimum Top/Unit Widths (Required to Accommodate Hydraulic System):
      • Electric Motor Hydraulic System:
        • 12″ Lift – 34″ Min. Width
      • Manual Crank Hydraulic System (Min Depth if Hand Crank located at front of Unit):
        • 12″ Lift – 22″ Min. Width or Depth
  • “B” – 30″ & 36″ Depth (Front-to-Back)
  • “C” – 30″ (Sitting “Desk” Height), 34″ (ADA/Accessible Height), 36″ (Standing Tasks)
• Durable Steel Top Frame with Telescoping Aluminum Legs & Steel Base Legs
  • Welded Tubular Steel Frame Connections for Non-Adjustable Components
• Adjustable Leveling Feet.  Casters available as option – See below…
• See our Cleanroom Workbench Section for Electropolished Stainless Steel Tables…
• Many Top Options to Choose From, Including Plastic Laminate, Chemical Resistant, ESD / Static-Control, Solid Surface, Solid Wood (Butcher Block), Stainless Steel, and More…

This model is part of the RDM Industrial Workbenches standard models.
